THF系列全自動氬?。ǖ入x子）環縫焊接機

THF Series Automatic TIG (Plasma) Circular Seam Welding Machine

整機特性：

1.  根據焊接工件的形狀和尺寸可設計成臥式和立式結構；

2.  工件旋轉由變頻電機(或伺服)+減速機+三爪夾緊的驅動方式，運動平穩，無級調速；

3.  工件壓緊、松開以及焊槍進退均采用氣缸驅動，并且焊槍具有精密微動調節機構，以便焊槍與焊縫形成最佳方位；

4. 控制系統采用PLC或繼電器集成化控制，操作界面簡單友好，修改維護方便；

5. 可任意匹配各種類型弧焊電源（氬弧焊/CO2焊/埋弧焊/等離子弧焊）。

6. 主要用于不銹鋼、鐵、鋁、黃銅等各種金屬的圓形，橢圓形及異形的高質量環縫焊接

Main Features and Applications

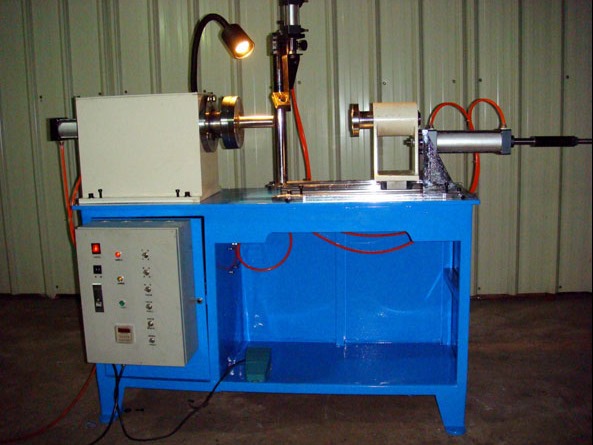

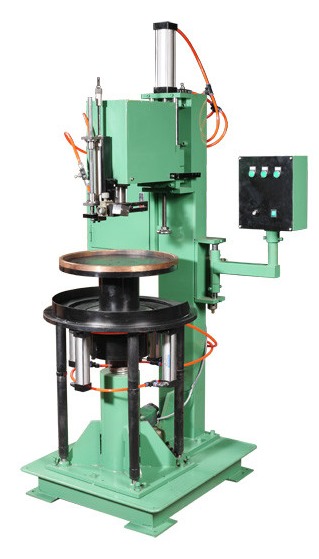

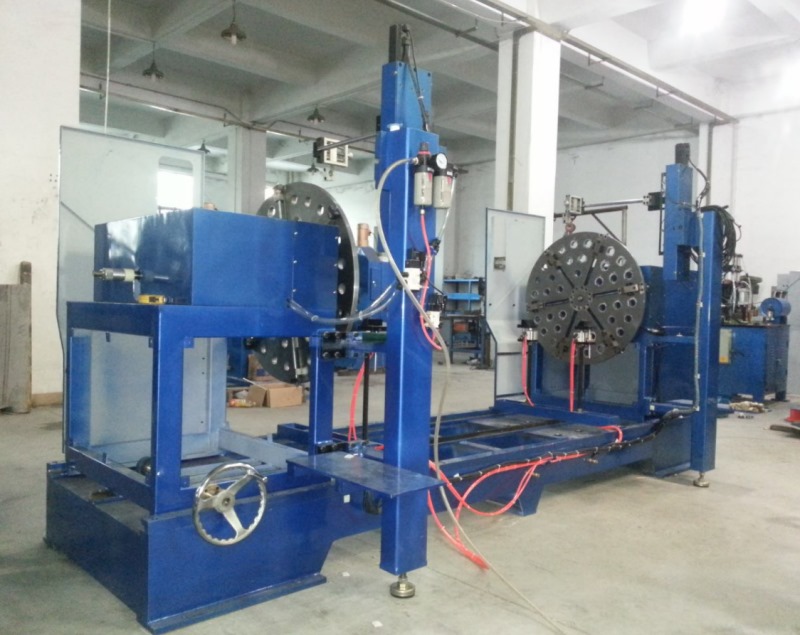

1.According to the shape and size of each welding part, the machine can be designed as Horizontal Type and Vertical Type ;

2.clamp, travel steadily with step less adjustable speed;

3. Clamp axle and fixing system pressing down , releasing and retreat , welding torch’s action all are driven by

air cylinders , furthermore welding torch has been equipped with precision micro-adjustment mechanism to get

the best welding position;

4.Control system adopts PLC or Relay integrated control, reliable and simple interface , easily modify and

maintenance;

5. Apply to cooperate welding with TIG, MIG, MAG, SAW and Plasma-Arc welding source.

6. Mainly used for the high quality circular welding of round shape ,oval shape or special shape made with

stainless steel, iron, aluminum and brass, etc;

主要技術參數 Main Technical Parameters

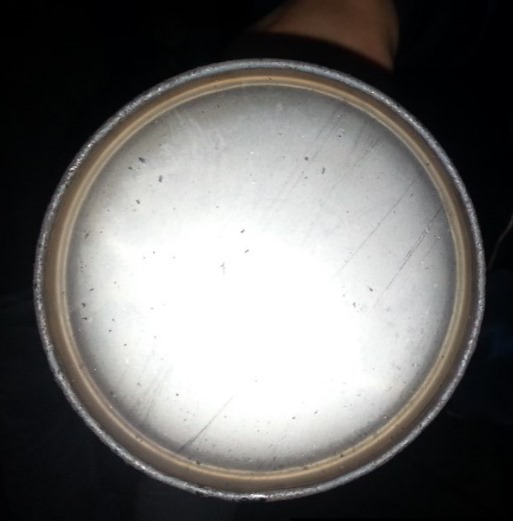

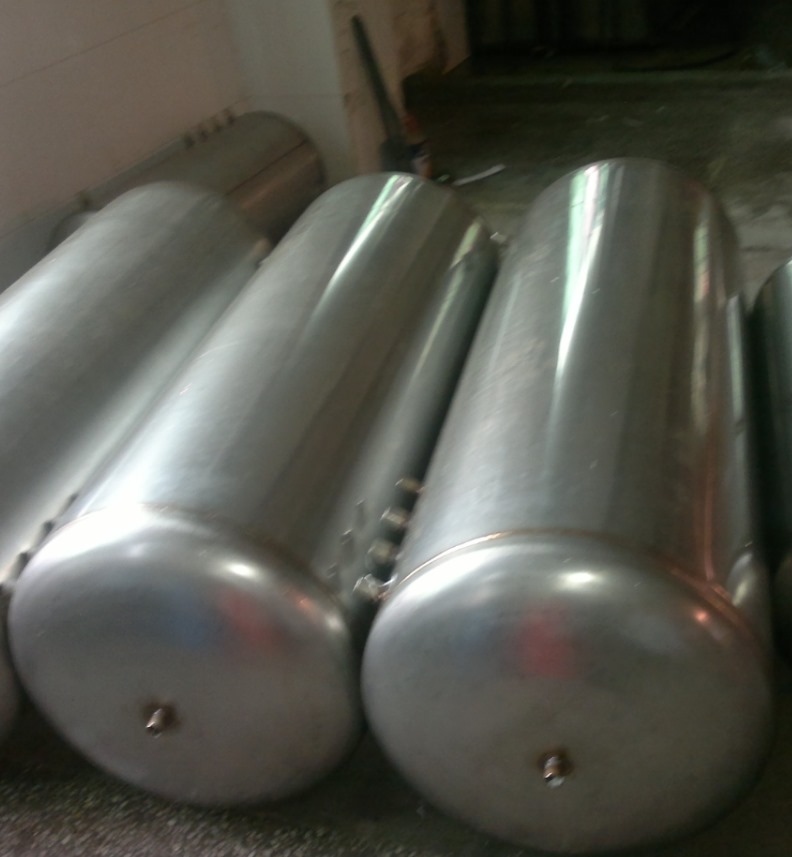

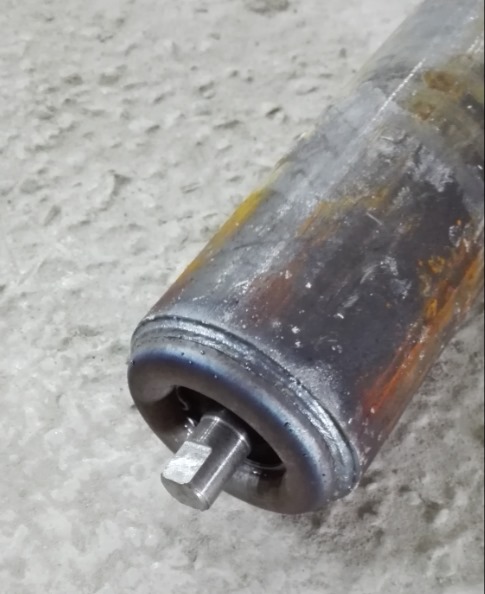

焊接樣品：
