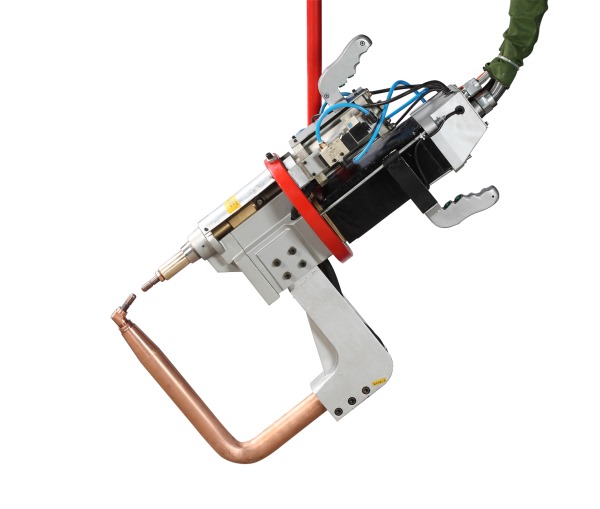

TDN2系列一體化懸掛式點焊機

TDN2 Series integration Suspension type spot welding Machine

性能特點：

1. 變壓器與焊鉗連為一體，優質鑄造鋁合金（ZL104）機身，具有重量輕，體積小、出力大、高效節能

2. 電極臂全部采用優質鉻鋯銅（CuCr1Zr），并加裝了鋁合金護套，保證了焊接性能的穩定性、焊機使用的壽命及電極臂的強度。同一種機型的電極臂可任意互換，做到一機多用。

3. 焊接變壓器采用了U型鐵芯，與其他公司的E型鐵芯相比，降低了電磁渦流產生的耗損，保證了焊接質量。

4. 氣動加壓系統為我公司自行設計的大口徑鋁合金氣缸筒，焊機出力更大（電極壓力高），從而保證了焊點強度,特別是焊接中厚板時，效果更好。

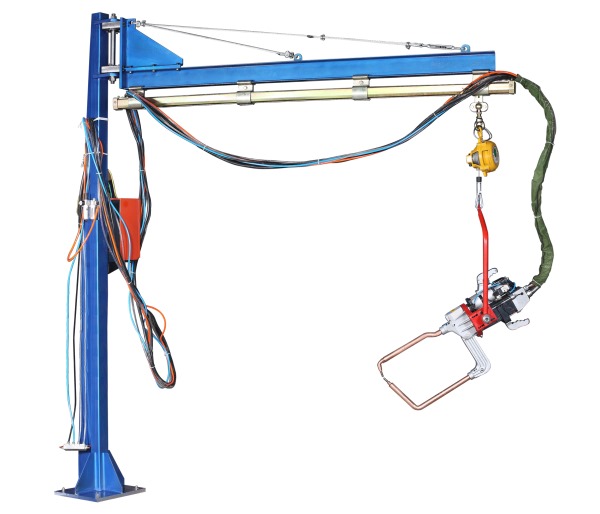

5. 懸掛裝置配合彈簧平衡器及相適應的輕便型滑軌滑車，可在X、Y、Z三維空間作上、下、左、右、前、后任意方向的移動和轉動，操作極為輕便靈活，實現了全位置全方向的焊接操作。

Main Features

1. The transformer and the welding clamp together, casting quality Aluminum Alloy (ZL104) body, has the advantages of light weight, small volume, large output, high efficiency and energy saving

2. Are all made of high quality chromium zirconium copper electrode arm (CuCr1Zr), and add the aluminum sheath, To ensure the stability and service life of the welder and welding performance of electrode arm strength.The same type of electrode arm can be arbitrary swap, achieve multi-usage

3. Welding transformer used the u-shaped iron core, compared with other company's E core, reduces the electromagnetic eddy current loss, to ensure the welding quality

4. Pneumatic pressure system for my company to design the large diameter of aluminium alloy cylinder tube, welding machine output greater pressure high (electrode), so as to ensure the solder joint strength, especially medium thick plate welding, the effect is better

5. Suspension with spring balancer and portable corresponds to the slide block, can be in the X, Y, Z three dimensional space for up, down, left, right, before and after any direction of movement and rotation, operation is extremely lightweight flexible, implements the omnidirectional all position welding operation.

主要技術參數 Main Technical Parameters
