TDNT系列搖臂式臺面點焊機

TDNT Series Table spot welding Machine

特點及用途:

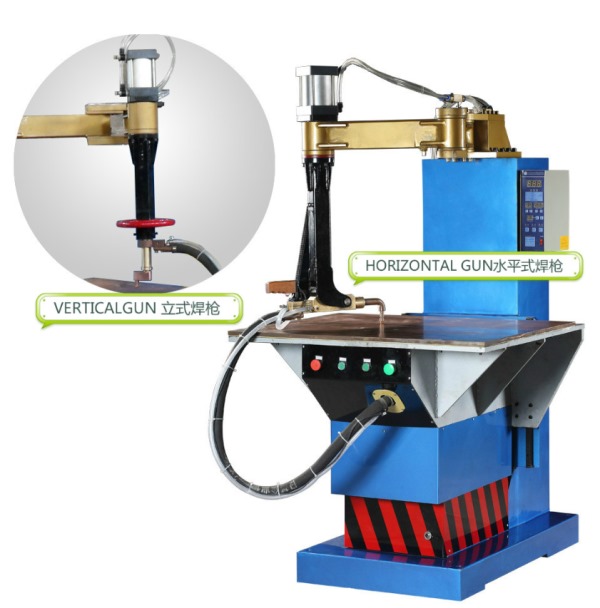

1、焊槍為垂直式或杠桿加壓式結構設計，很容易伸到箱體深處進行焊接。

2、上電極為多關節搖臂形式，獨有的平行關節結構使運轉靈活、焊接方便、焊接范圍更大，只移動焊槍即可在整個臺面內焊接

3、下電極為水平工作臺，工件可直接放置在工作臺面上，操作簡單，使用方便，無需特殊的技能或經驗均可以輕松的操作。

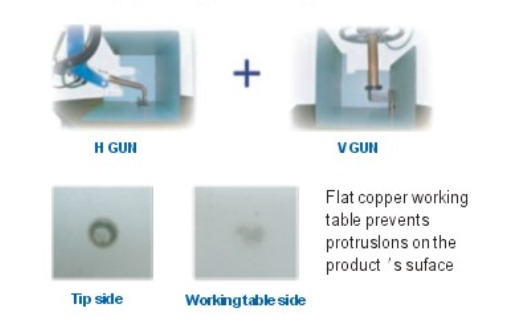

4、采用氣動加壓，可降低操作者的勞動強度，獲得恒定的點焊壓力，使焊點均衡一致。對鐵柜、箱體、操作臺等產品進行焊接時，產品外表面沒有任何焊坑，提高了產品質量。

5、焊接平臺可在200mm范圍內任意升降，方便不同形狀和高度的產品焊接

Main Features:

1、Welding torch to the vertical type or lever pressure type structure design, easy to stretch to the depths of the enclosure to welding

2、For welding arm joint arm structure, unique parallel actuated flexible joint structure, welding range is bigger, every point can be easily reached

3、Level was under the table, the workpiece can be directly placed on the table, simple operation, easy to use, no special skills or experience are easily operation

4、Adopt pneumatic pressure, can reduce the labor intensity of workers, have spot welding constant pressure, make the solder joint equalization.On iron cabinets, cabinet, work station and other parts during welding, external surface of the parts without any welding pit, improves the product quality.

5、 At the same time in the 200mm range the lower welding flat table can go up and down freely, by this way it is suitable for welding various shape and size of products.

主要技術參數 Tmain Technical Parameters:
