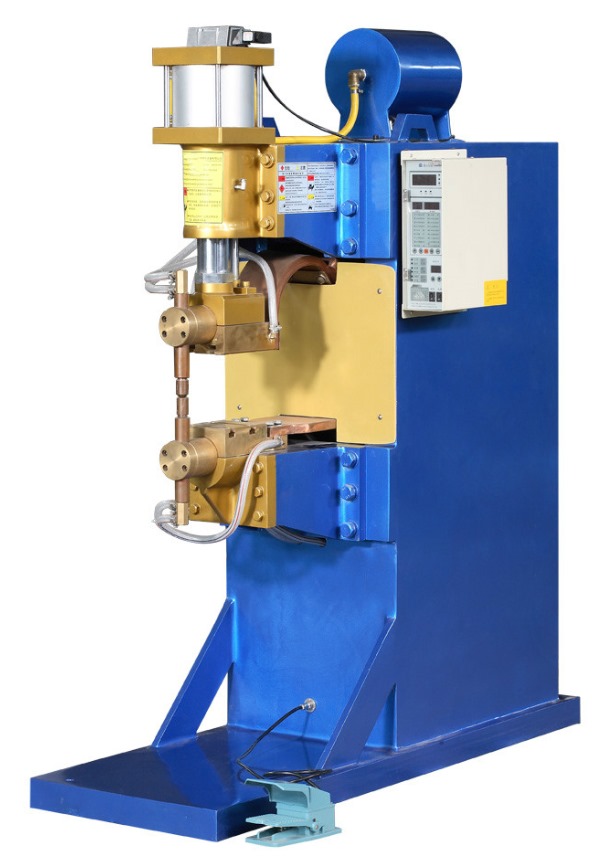

TDN系列交流點(凸)焊機
TDN Series Pneumatic AC Spot＆Projection Welding Machine
特點：
1.特殊設計的一體化加壓氣缸，確保加壓的穩定性、隨動性及焊接速度，一體式高強度的機架結構,更具有抗沖擊及抗震能力。
2.全銅水冷變壓器，進口矽鋼片，環氧樹脂澆鑄，占載率高，使用壽命更長
3.多路循環水冷卻系統，保證設備長期運行的可靠性和穩定性。
4.點焊和凸焊兼用，最大發揮焊接性能。
5.配備恒壓、恒流、恒熱量、多段放電、緩升緩降等多功能微電腦控制器，可儲存多組焊接參數，輕松滿足客戶對焊接產品品質的高要求。
Main Features:
1.Special design of Integrated Pressurized Cylinder, To ensure the stability and the pressure of the pressure and the speed of welding,Integrated high-strength frame Structure,more impact resistant and anti-shock ability under high pressure operation.
2.All copper water-cooling transformer,Multi-channel forced water cooling system to ensure the reliability of the machine running for long time
3.Improved water-cooling system guarantees flawless performance in heavy-duty applications.
4.Rigid Frame of the Machine allows the use as Projection or Spot welder.
5.equipping functions of Constant Voltage,Constant Current,Constant Heating,Slowly Increasing,Slowly Decreasing,save multi-group Schedule Number,etc.Easily meet customers,high requirements of welding quality
主要技術參數 Main technical Parameters:
項目 Item
型號 model | 額定 容量 Rated capacity | 額定初 級電壓 Rated Primary voltage | 額定 頻率 Rated frequency | 最大次 極電流 Max. secondary current | 負載持續率Rated duty cycle | 臂伸 尺寸 Arm length
| 最大加壓力 Maximum Force
| 電極 行程 Electrode stroke | 冷卻水 流量 Cooling Water flow | 重量 weight | 電極尺寸 Electrode size | ||
電極頭 Electrode Head
| 電極握桿 Electrode holding rod
| 電極臂桿 Electrode arm
| |||||||||||
KVA | V | Hz | A | % | mm | N | mm | L/min | Kg | (mm) | (mm) | (mm) | |
TDN-25 | 25 | 380 | 50/60 | 17500 | 50 | 380 | 2500 | 60 | 6 | 300 | 16 | 20 | 45*200 |
TDN-35 | 35 | 380 | 50/60 | 18500 | 50 | 380 | 4000 | 60 | 6 | 380 | 16 | 25 | 50*200 |
TDN-50 | 50 | 380 | 50/60 | 20000 | 50 | 380 | 6000 | 60 | 6 | 430 | 16 | 25 | 50*200 |
TDN-75 | 75 | 380 | 50/60 | 25000 | 50 | 380 | 6280 | 60 | 8 | 500 | 16 | 25 | 60*200 |
TDN-100 | 100 | 380 | 50/60 | 30500 | 50 | 380 | 6280 | 60 | 8 | 600 | 16 | 25 | 60*200 |
TDN-150 | 150 | 380 | 50/60 | 38500 | 50 | 380 | 9800 | 60 | 12 | 750 | 20 | 30 | 80*250 |
TDN-200 | 200 | 380 | 50/60 | 43000 | 50 | 380 | 9800 | 60 | 12 | 800 | 20 | 30 | 80*250 |

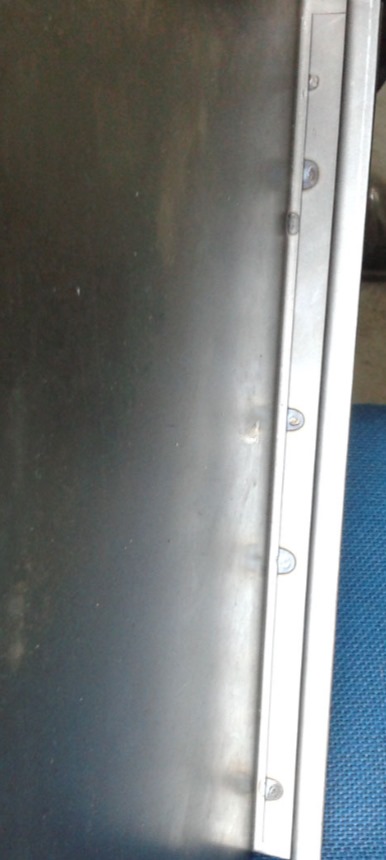

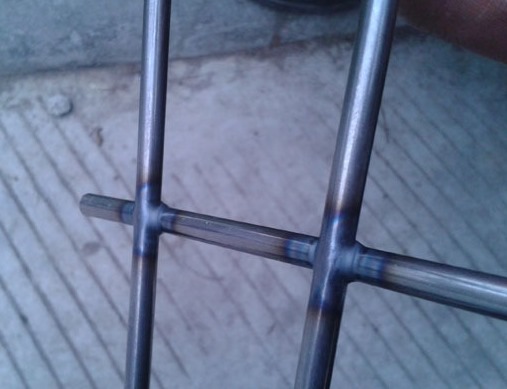

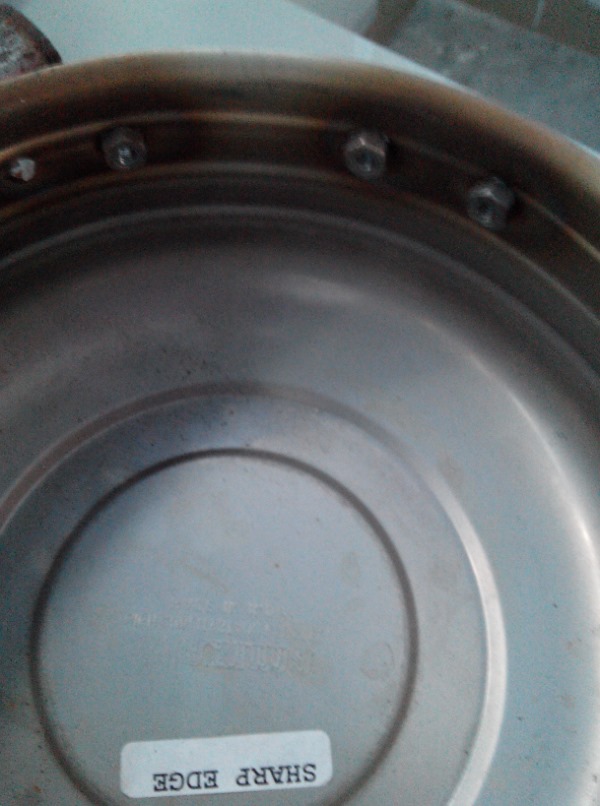

焊接實樣Welding Samples
